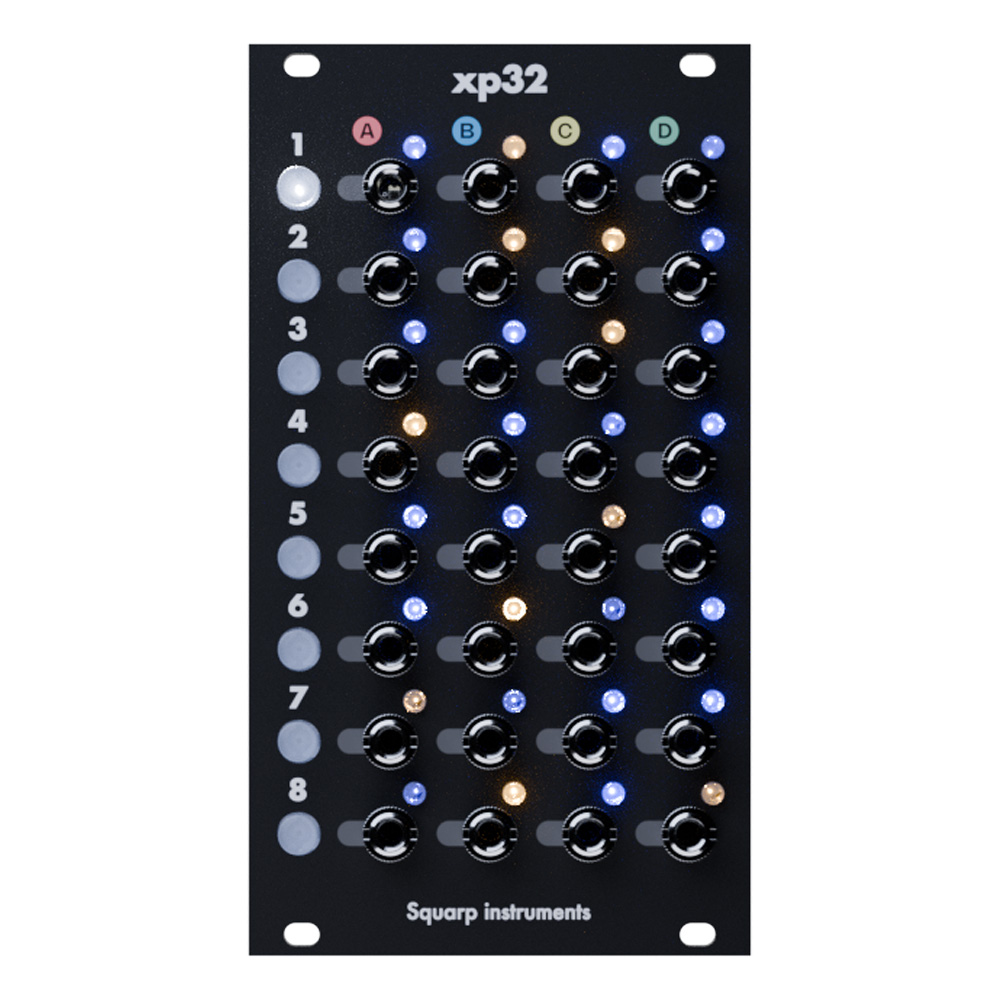

Squarp xp32 Hermod Expander Eurorack Module (Black)

589.00 inc. VAT

486.78 ex. VAT

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


With 32 additional assignable CV or Gate outputs, the xp32 transforms Hermod+ into a 16-track CV/Gate powerhouse, an expansive MIDI/USB-to-CV interface, and a versatile preset manager. Setting up the xp32 is incredibly simple. By connecting the included expander ribbon cable to the back of Hermod+, the xp32 integrates instantly, no configuration required. Hermod+ automatically recognizes the xp32, making all 32 additional outputs immediately available.

Importantly, Hermod+’s original 8 CV/Gate tracks remain untouched. Instead, the xp32’s 8 additional voices are internally mapped to Hermod+’s MIDI tracks, ensuring a natural workflow expansion without disrupting your existing sequencing setup. At the core of the xp32 is high end digital to analog conversion technology, utilizing dedicated 16-bit industrial grade DACs for every output. This ensures exceptional accuracy and stability across all control voltage signals, from precise pitch tracking to intricate modulations.

The XP32 offers versatile use cases to suit diverse creative needs. By default, XP32 outputs include note pitch, note gate, note velocity, and modulation, coming from Hermod+ patterns, but it can also be configured as a CV converter from a DAW, sending USB MIDI inputs directly to its outputs.

All these configurations can be save/load as presets, making any setup quick and easy to access, enhancing workflow and performance adaptability.

XP32 PRODUCT SPECIFICATION?

  • XP32 is an expander, this product is made to work with Hermod+ only.?
  • 32 CV Outputs
  • CV outputs resolution : 16-bit industrial grade DAC
  • CV outputs range: -10V/+10V
  • With a wide voltage range of -10V to +10V, the xp32 ensures compatibility with a diverse range of modular systems, giving users full creative freedom to customize their setup without limitations.

Specifications

  • Width: 14hp
  • Depth: 33mm
  • Power: +12V 70mA / -12V 80mA / +5V 20mA

Manufacturer product page here.
