Rampes is a video ramp generator and sync extractor, supporting the following formats:
288p50 / 240p59.94 / 576i50 / 480i59.94 / 576p50 / 480p59.94 / 720p50 / 720p59.94 / 720p60 / 1080i50 / 1080i59.94 / 1080i60 / 1080p23.98 / 1080p24 / 1080p25 / 1080p29.97 / 1080p30
The format is detected and selected automatically.
In video, a ramp is a signal which produces a gradient that goes from minimum to maximum during the line interval (horizontal ramp) or the frame interval (vertical ramp). By mirroring and further processing them, it is possible to generate 2D shapes. Rampes also features horizontal, vertical and Odd/Even sync outputs, which allows to sync other video modules, as well as audio modules.

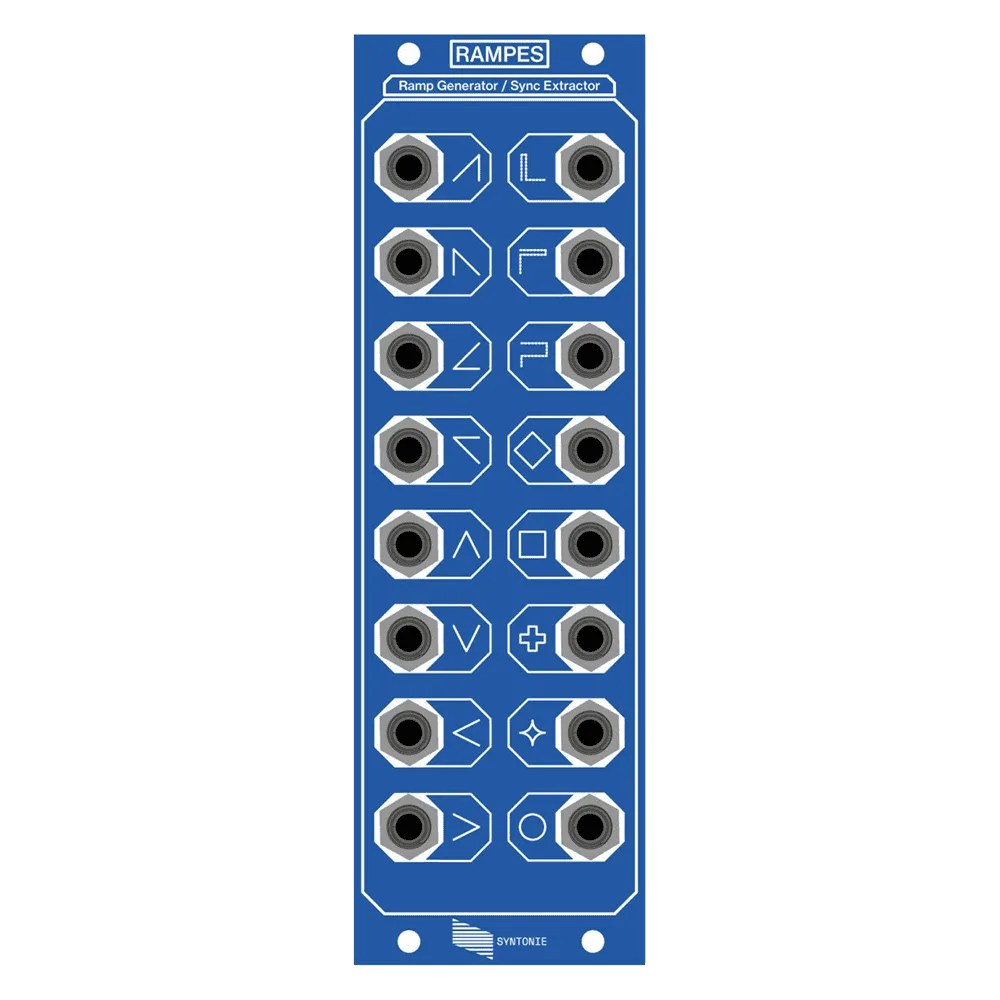

On its left side, Rampes features (top to bottom):
– Horizontal and vertical ramps with their inversions
– mirrored horizontal and vertical ramps with their inversions
On its right side, Rampes features (top to bottom):
– Horizontal, vertical and Odd/Even sync
– Diamond, Rectangle, Cross, Star and Ellipse shapes
Rampes requires a sync signal over RCA to operate, coming either from a sync generator module, or an external video signal (Composite or Y from Component).
The module is powered through standard Eurorack connector or DC barrel.
Inputs: RCA Sync input (rear), 75ohm
Outputs:
– RCA Sync output (rear), 75ohm
– 0-1V Ramp and shapes outputs, 75ohm
– 0-5V Sync outputs, 75ohm
Specifications
- Width: 8hp
- Depth: 45mm
- Power: +12v 200mA / -12v 0mA / +5v 0mA
Note that the depth indicated is when using right angle RCA cables.
