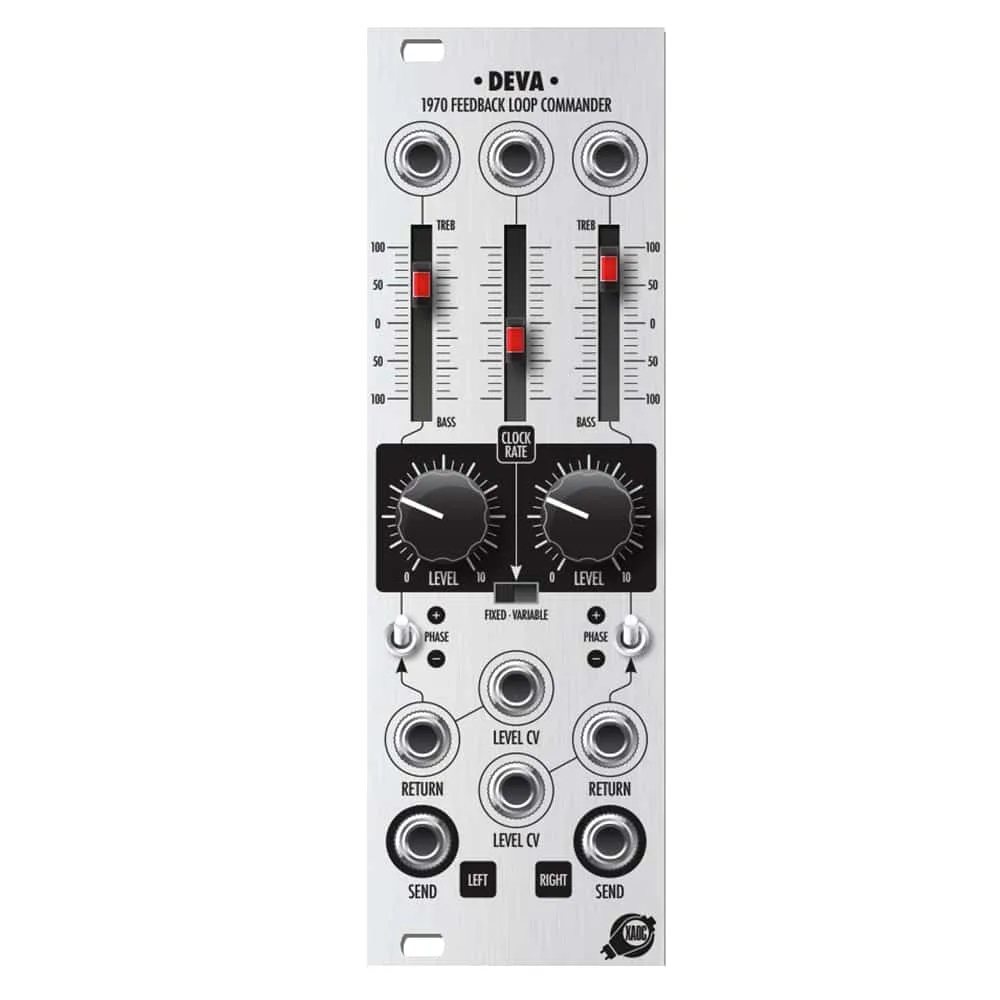

Xaoc Devices Deva Eurorack Expander Module (Timiszoara)

Deva is an expander for Xaoc Devices Timiszoara multi-fx module designed for creative exploration of the dirty/nasty side of signal processing. Deva opens up the Timiszoara programs you’ve come to love with some unexpected twists and turns along the way. The analog side features two external feedback loops (for the left and right channel) with tilt filters adjustable via sliders with two additional switches for choosing positive or negative feedback (for each channel). The third slider controls the DAC clock – from overclocking by a factor of two down to 16-times slower, so you can go from chipmunk to hardcore teeth gnashing of underclocked goodness. A switch allows for turning the clock control off for normal/regular operation. All features have inputs for external CV.

Features

• Two external feedback loops (L/R) with positive/negative feedback and tilt filters
• DAC clock control (over and underclocking)
• CV control over everything

Specifications
Width: 8hp
Depth: ~30mm
Power: 60mA +12V | 50mA -12V
Manufacturer product page here.
Product manual here.
