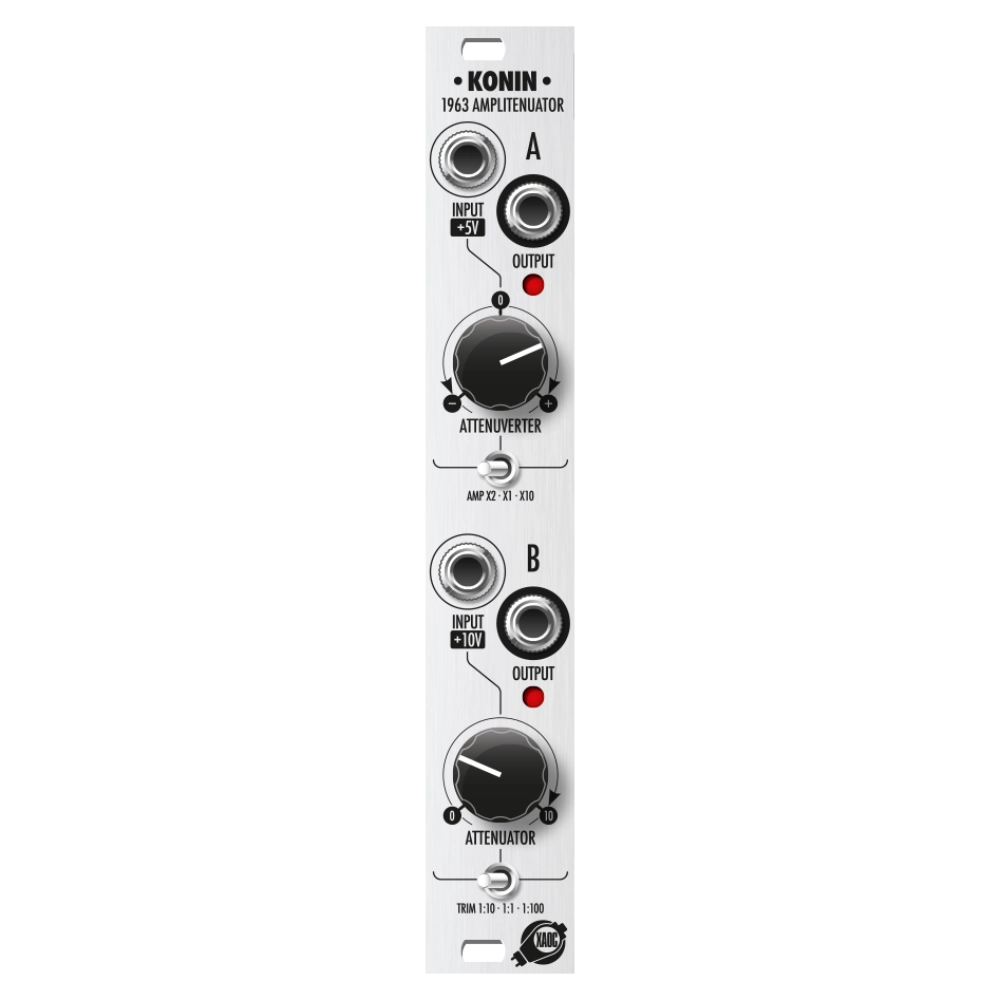

Konin is only 4HP and fits into any case. It is designed for precise manual control of gain and attenuation across two channels. Whenever you need to boost a weak signal by up to +20 dB or tame it down to just 1% of its original amplitude (or even less!), Konin is ready to oblige. It also serves as a versatile voltage source, spanning the full range from -10V to +10V, or fine-tuning to 10mV, all adjustable with a single, smooth turn of the knob. Oh, and it can be a simple dual attenuator as well.
Features
- Precision attenuator
- Attenuverter
- Signal amplifier up to +20dB
- Dual adjustable voltage source
Specifications
- Width: 4hp
- Depth: 31mm
- Power: +12V 15mA / -12V 10mA
