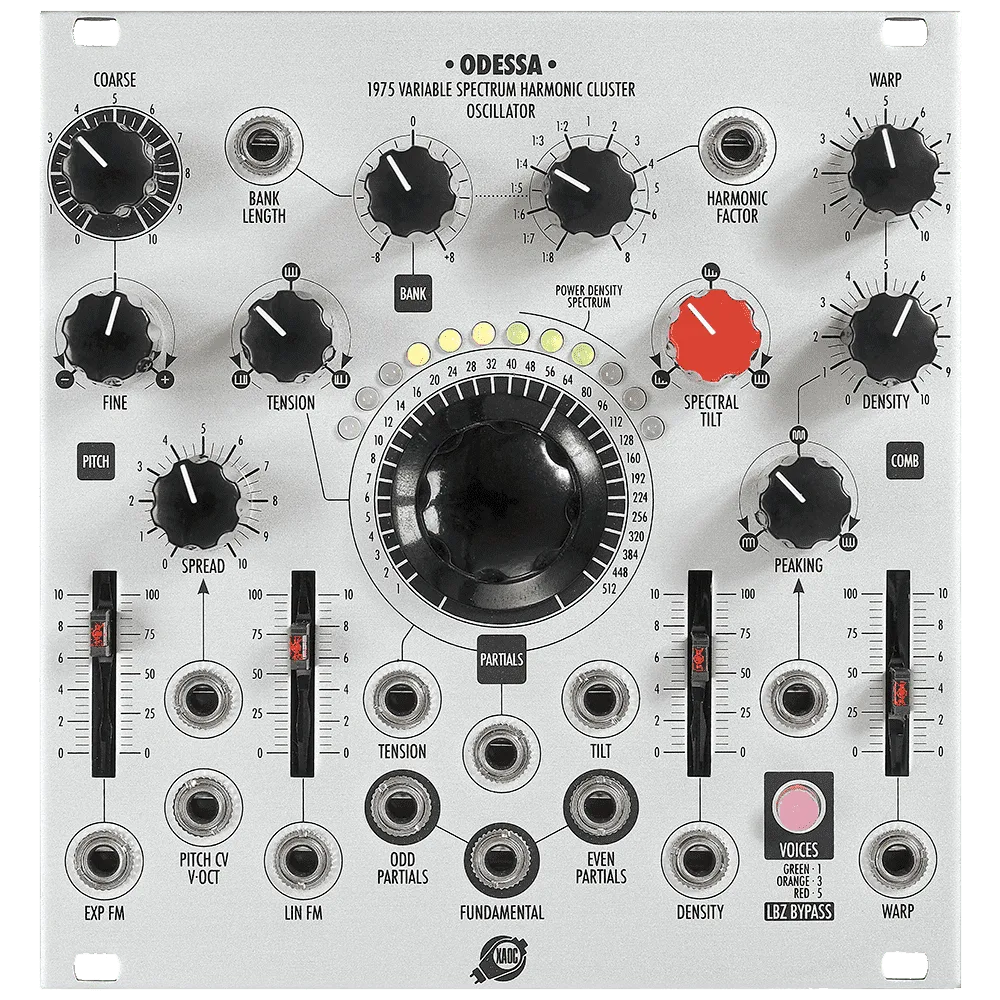

Xaoc Devices Odessa Eurorack Additive Harmonic Oscillator

499.00 inc. VAT

412.40 ex. VAT

In stock

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


Odessa is an additive oscillator, which means the output signal is synthesized by adding a multitude of sinusoidal components (up to 2560 harmonic partials). By manipulating their parameters it is possible to obtain a broad range of unearthly sounds as well as classic saw, square, and pure sine. Odessa offers a set of controls for shaping harmonic spectra based on number of partials and their distribution in frequency and amplitude; all of which is illustrated by a spectrum analyzer comprising 12 multicolor LEDs. The series of harmonics can be squeezed or spread apart, tilted, or pruned by a comb-like frequency response, resulting in a huge variety of spectra. Animating the comb response yields radical effects similar to flanging and phasing. All partials are frequency-related to a common fundamental and controlled by a single volt/octave input. Additionally, the signal can be frequency modulated by exponential and linear (through-zero) means. Also, up to five detuned voices can be spread apart for a fat and dense cluster, or a powerful chord.

Features

  • Powerful additive synthesis engine with up to 2560 sinusoidal partials
  • 0.5Hz to 21kHz frequency range with resolution of 0.006Hz
  • Harmonic or inharmonic spectra shaped by tilt and warped comb response
  • Volt/octave pitch control
  • Through-zero linear FM input
  • Up to 5 unison and detuneable voices
  • Three signal outputs

Specifications
Width: 24hp
Depth: 32mm
Power: +12v:110mA / -12v:80mA

Manufacturer product page here.
Product manual here.
