4 x 4 Preset Voltages
PV44 lets you select between 4 groups of 4 voltages via prioritized trigger inputs.
1V, 2V, or 4V range for the upper rows, +5V and ±5V for the lower rows.
Common modulation input with an attenuverter per row.
The 4 trigger signals also go to an OR logic gate, which proves to be handy when using PV44 with percussion synthesizers or envelope generators.

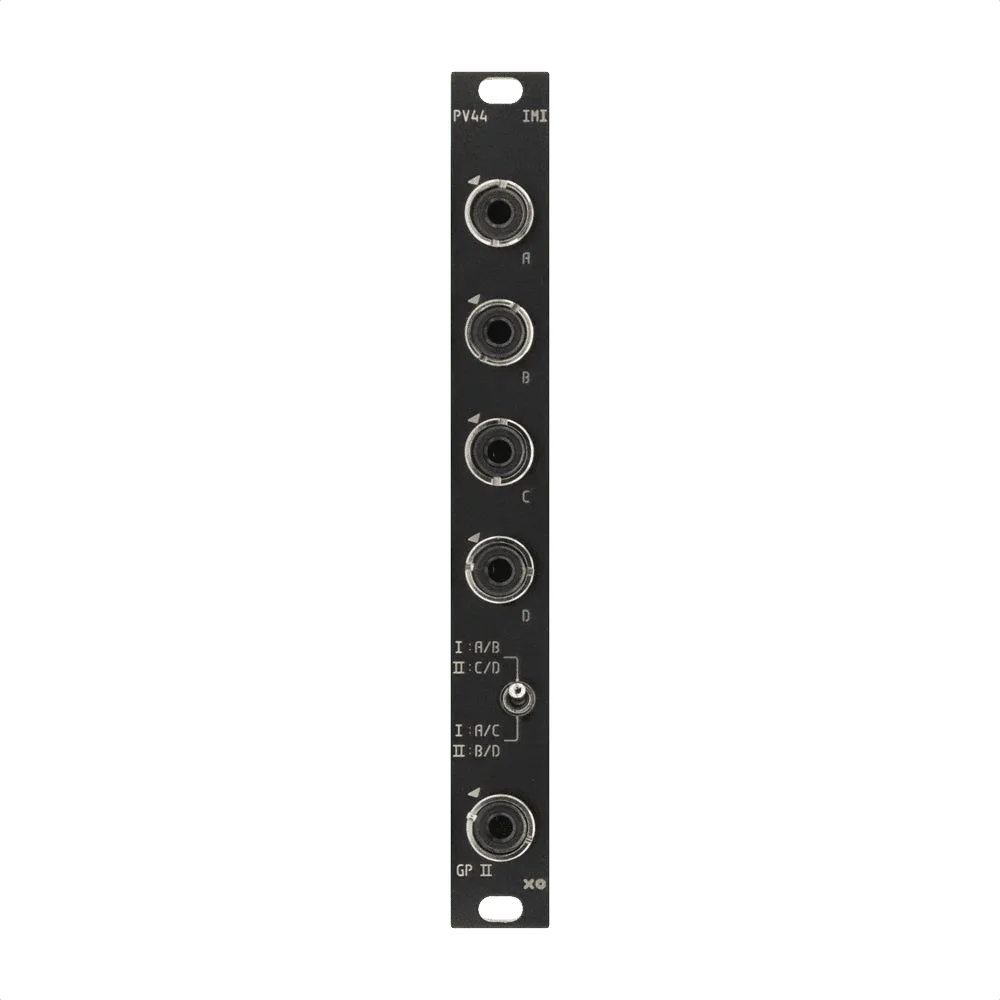

PV44 IMI expander adds a couple modulation possibilities to a stock PV44.
The original PV44 modulation input is still effective when used, and becomes the modulation group I when a signal is inserted in the bottom jack on the expansion (group II).
The groups destination can be selected with a switch, and reduces the need of multiples.
The top A/B/C/D jacks, directly go to their respective attenuverters.
PV44 IMI comes with a 1HP blank.
Possible Uses
- Create 4 “instruments” out of a single percussion synth
- Effects settings navigation
- Pattern variation
Specifications
Width: PV44 20hp / IMI 3hp
Depth: 30mm
Power: +135mA, -70mA
