Commonly audio Crossovers split an audio signal into several frequency ranges so that each resulting signal is adequate for the speaker drivers they are connected to, usually low range is sent to the big woofers, mid range to smaller woofers and high range to the tweeters.

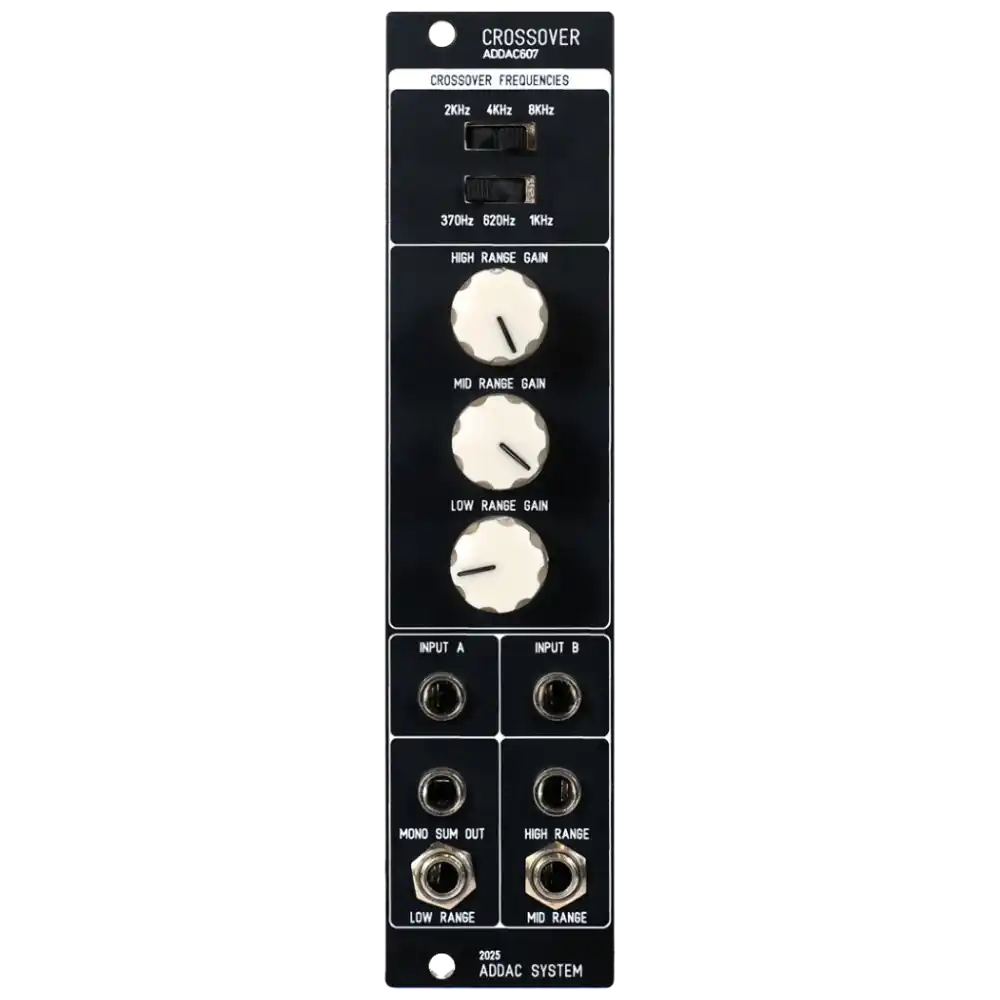

Here we introduce ADDAC607, a mono 3 band Crossover featuring 4 pole, 12db Sallen-Key active filters and volume controls for each band. Although ADDAC607 operates in Mono (for Stereo signals two modules can be used) there are 2 audio inputs that allow an easy way for Stereo to Mono summing. The [MONO SUM OUT] carries this summed signal. This output is pre-gain and can also be use as a buffered Thru output.
The possibility to split the signal into different bands makes possible several useful processes, as examples:
- Independently process specific frequency ranges like adding delay only on the high range band
- Split a signal to feed 3 compressors for multiple band compression
- By controlling the [GAIN] knobs they can act as “kill” switches in DJ mixers to remove a whole band from the mix
This module is also a great companion for the ADDAC220 Dual Envelope Follower+ allowing to extract the dynamics from any signal in a focused frequency range allowing to, as an example, separate a kick drum from a snare.
There are three switches to select the bands operating ranges:
- 2KHz, 4KHz and 8KHz for the high range
- 370Hz, 620Hz and 1KHz for the low range
The three [GAIN] controls set the volume for each band. At noon they are unity gain, fully CW they are x2 amplifiers.
Specifications
- Width: 6hp
- Depth: 45mm
- Power: +12V 60mA / -12V 60mA
